3EA Aluminum Roller Shutter (E83)

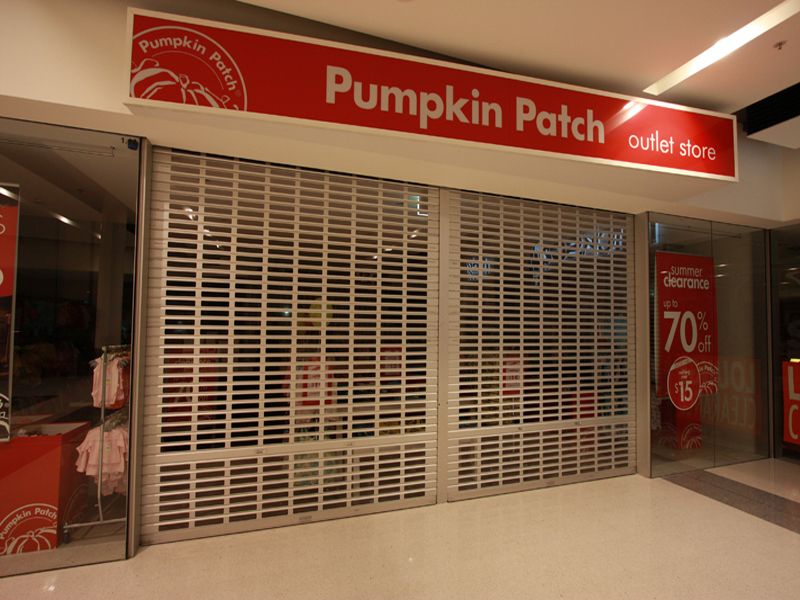

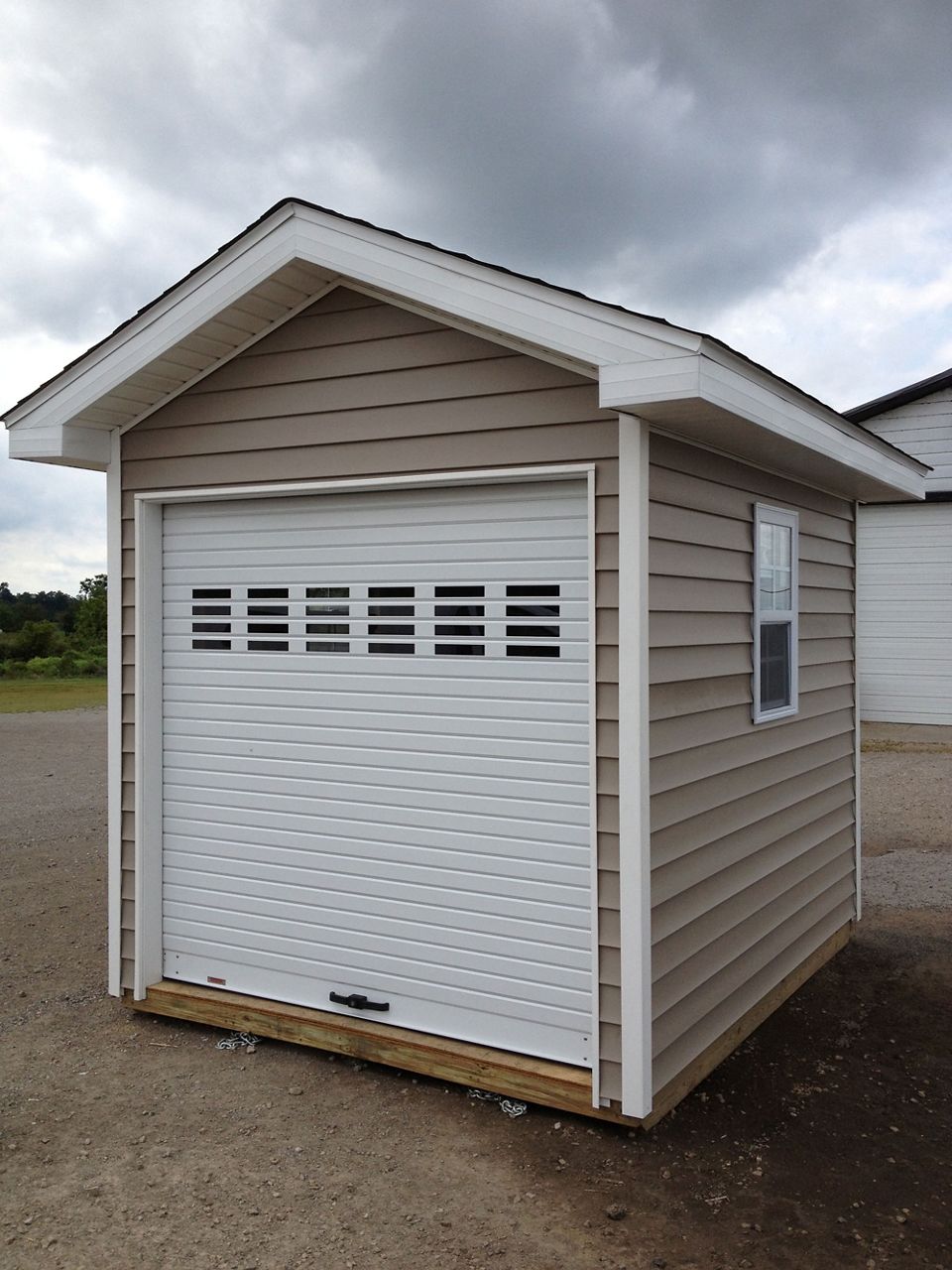

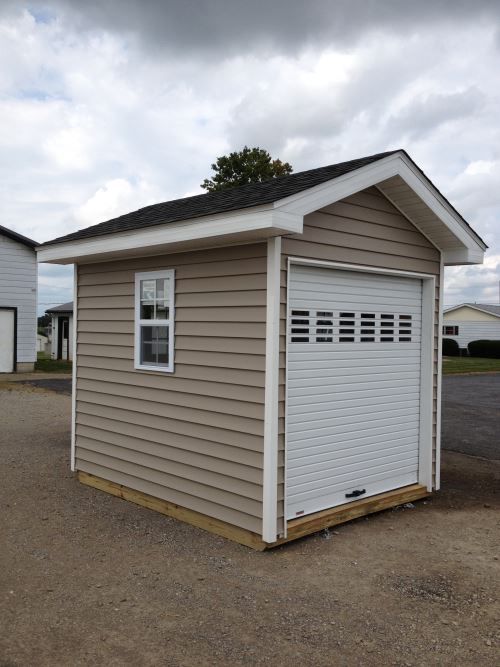

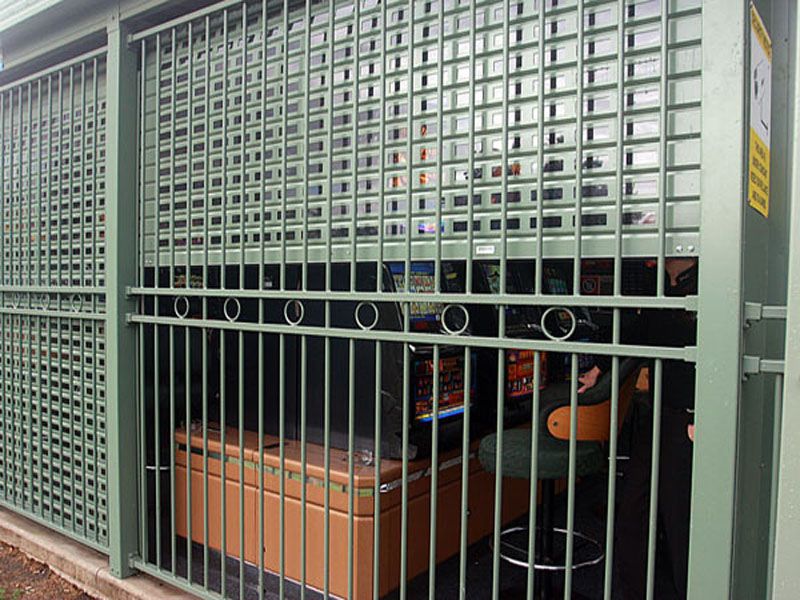

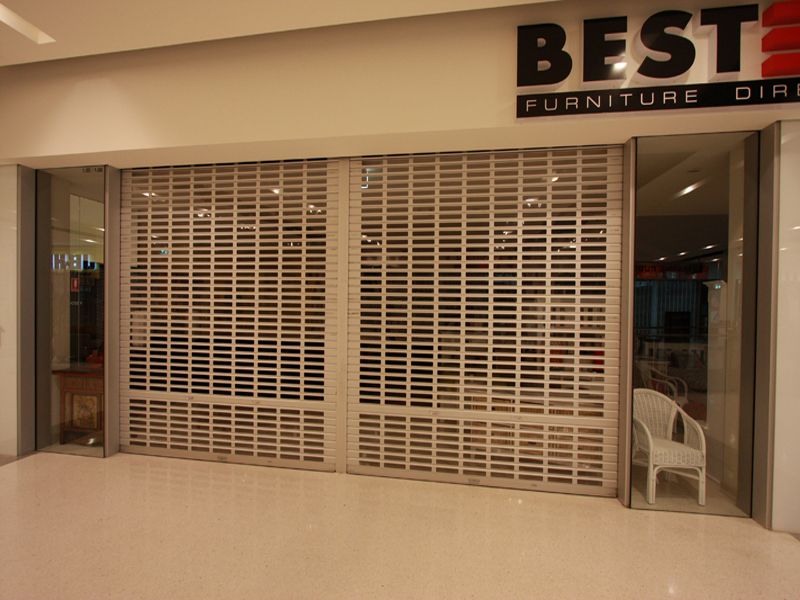

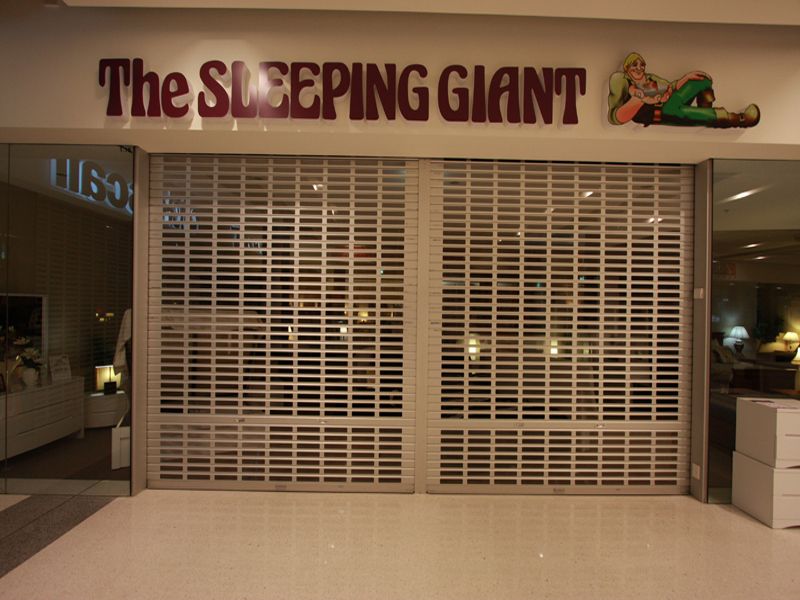

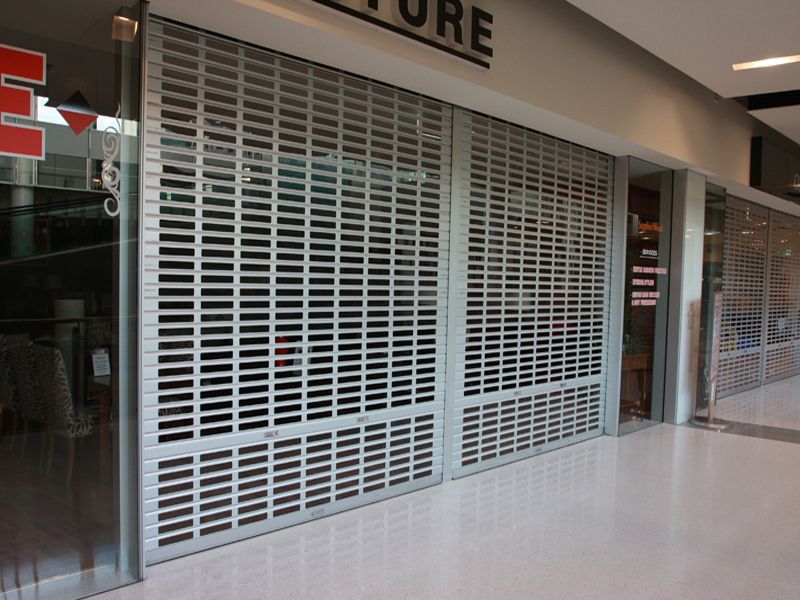

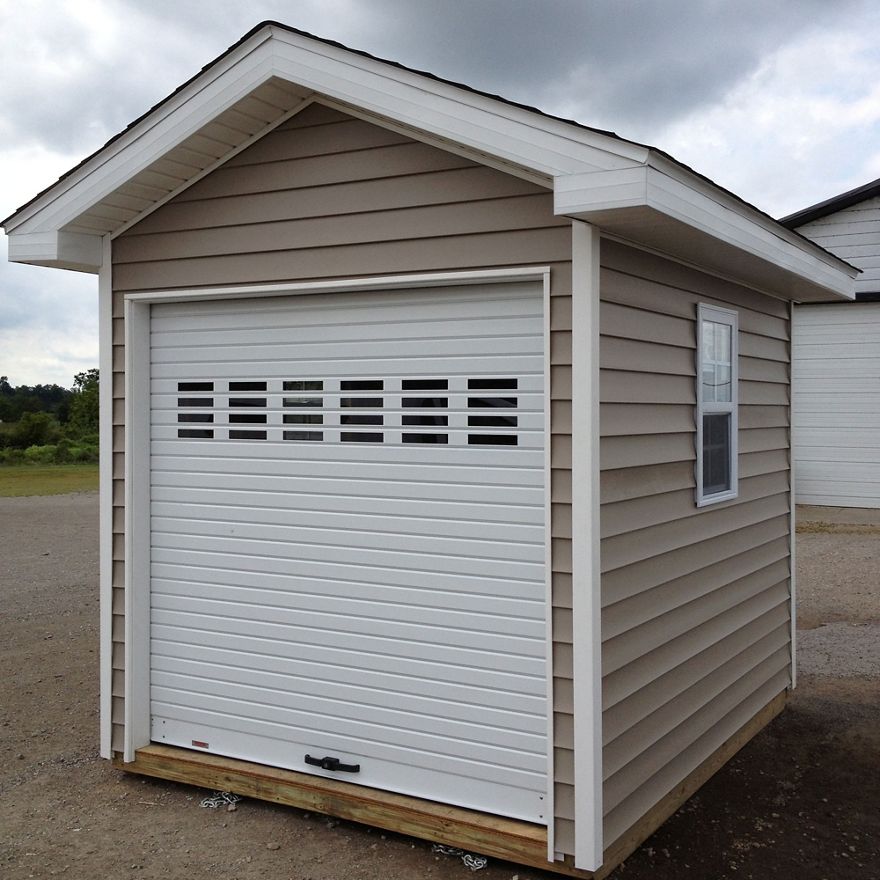

The 3EA provides many architecturally-appealing options. In addition to the solid slat, it can be slotted to provide visibility or air flow. Once slotted, a polycarbonate insert can be added to keep the visibility while restricting the airflow.

Size:

Up to 18′ wide by 10′ high. The 3EA can be hand operated up to 13′ wide by 8′ high, while a tube motor is used up to the maximum size.

Technical information

1 of 26

Features

  • Curtain – Constructed using 75mm interlocking extruded aluminum slats. The slats are retained in position using nylon end clips. Slotting options are available.
  • Bottom Rail – Rigid extruded aluminum section.
  • Track – Aluminum extruded track mounts to steel mounting angle which also accepts the head plate above.
  • Roller Drum – A 4″ steel tube provides a fairly compact roll while reducing deflection.
  • Operation – Doors up to a certain height can be hand operated while a tube motor provides opening and closing for the larger doors.

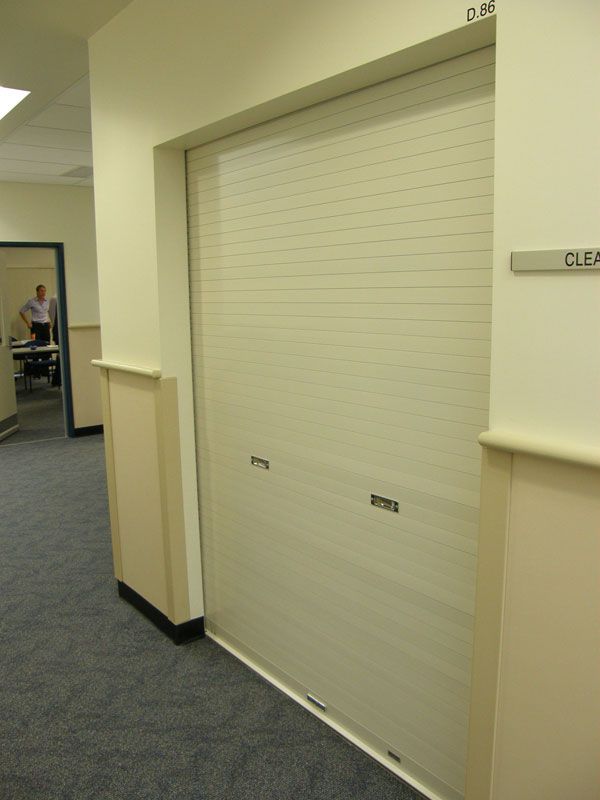

  • Locking – Several locking option are available of which the most common are the keyed (either at waist height or on the bottom rail) and the shoot bolts (inside or outside).
  • Finish – Most doors are powder coated to customer specifications. Stock colors tend to be less expensive than special order colors. Please refer to technical information below.
